V3 · SS
Up to 600kg

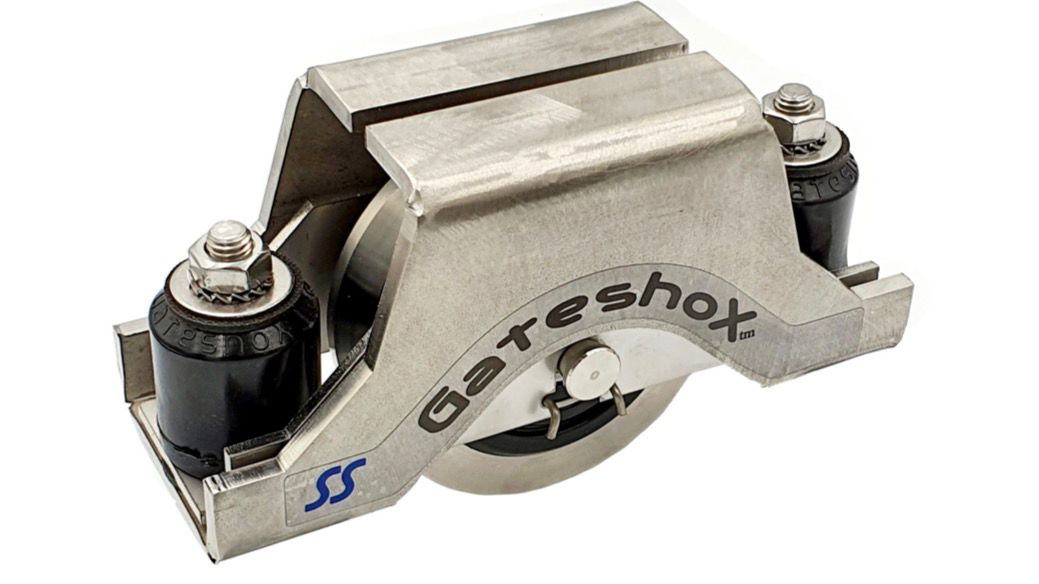

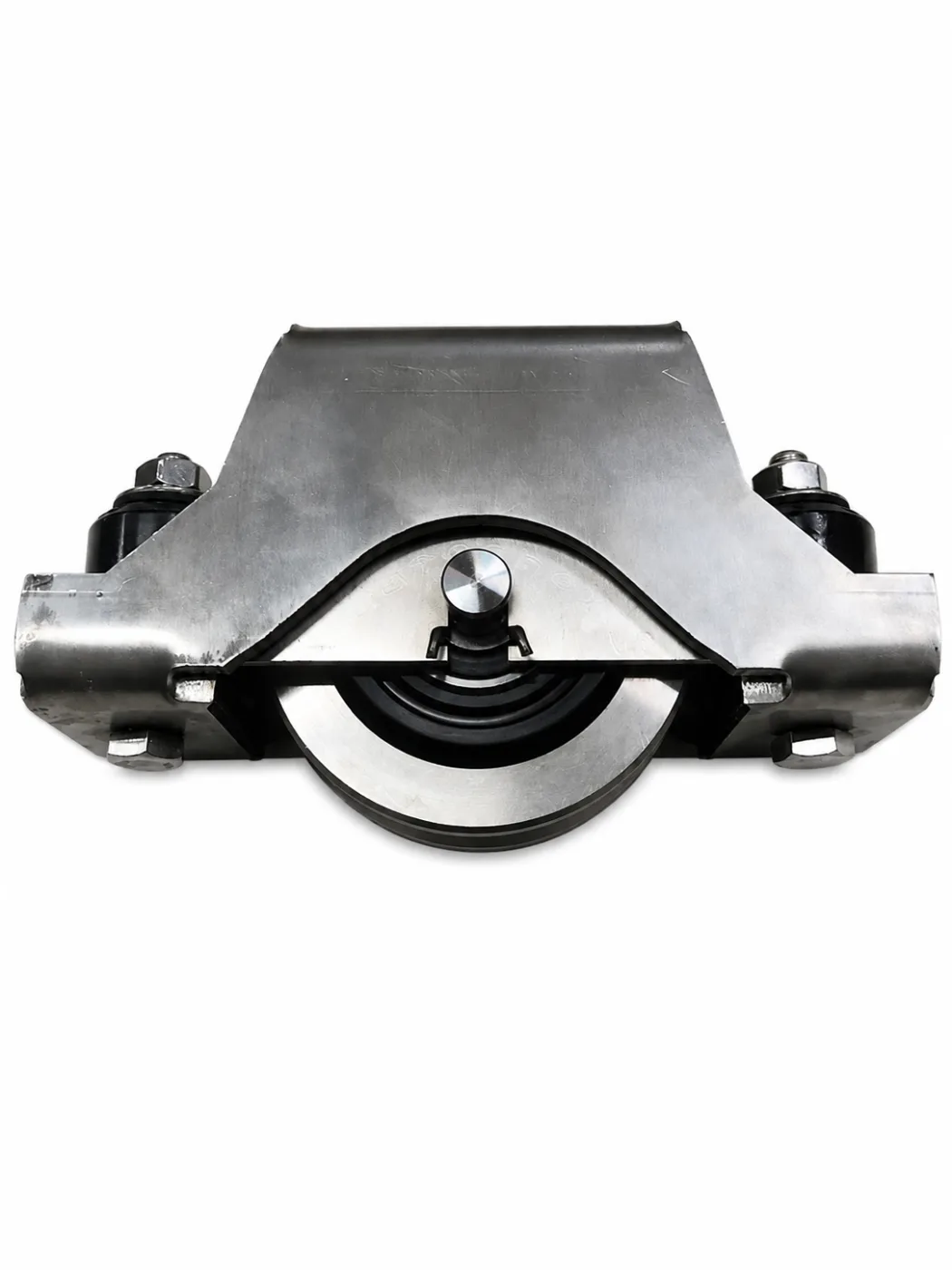

1 / 3 · Front view
Choose finish
V3 Wheel Set
Premium Heavy-Duty Sliding Gate Wheel Set.
Laser-cut, CNC-bent mounting bracket. Patented polymer-spring suspension. Sealed-bearing wheel. Engineered as one system — built to outlast the gate it carries.
Selected finish
Stainless Steel
Marine-grade stainless steel — best choice for coastal and high-corrosion environments.
- Whisper-quiet operation
- Reduces rail wear and eliminates corrugations
- Wheel bracket designed to last the life of the gate
- Steel wheel with polymer hub — absorbs shock & extends bearing life

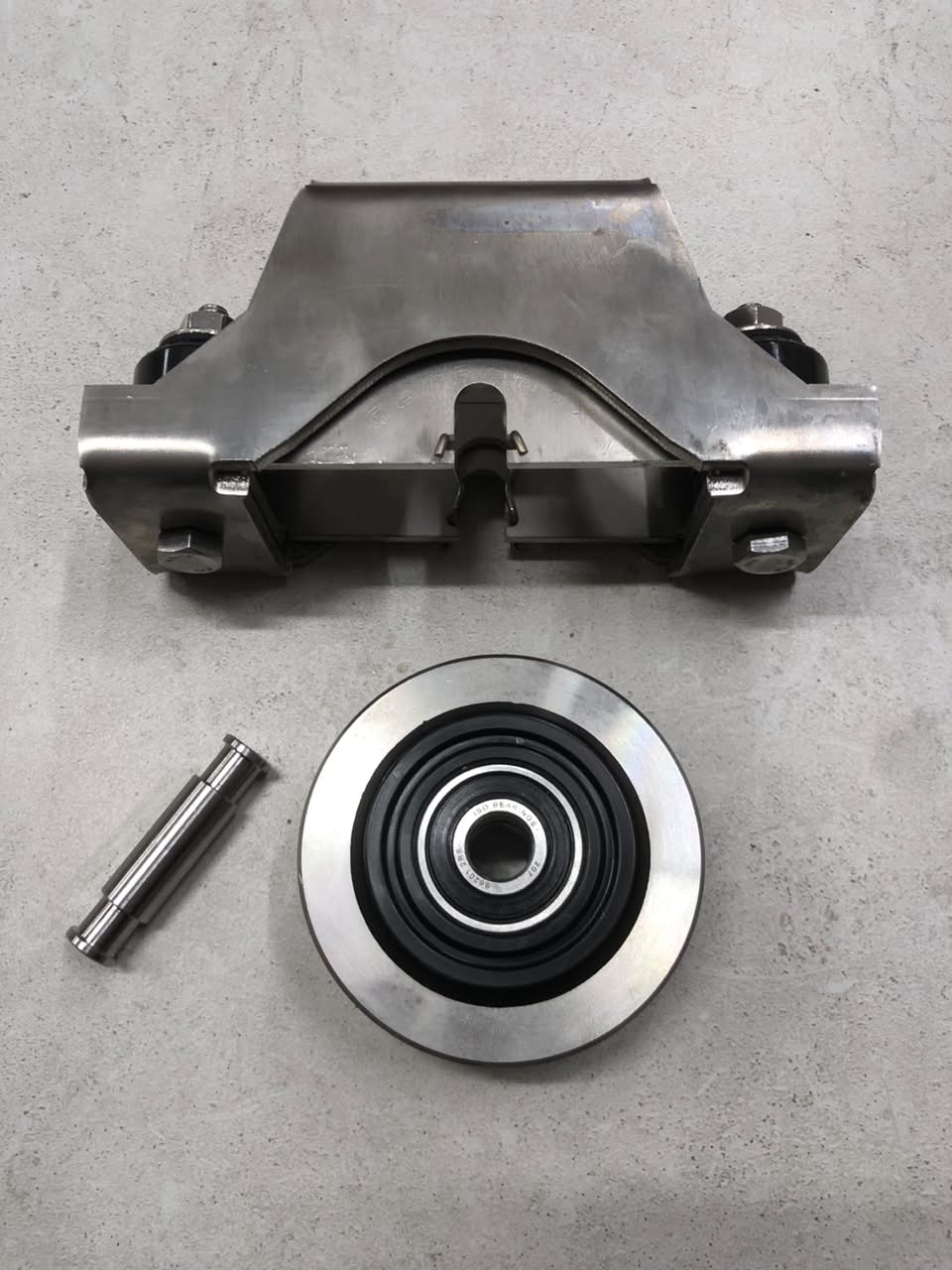

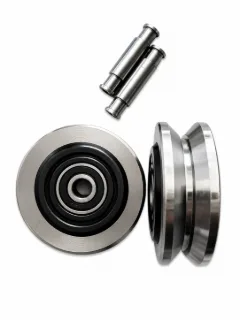

- Quick-change click in / out replacement wheels (sold separately)
- 600kg capacity per set — patented suspension adjusts to gate weight
- Tandem sets fit gates over 600kg — suspension shares loads evenly
- Angle or round rails (16mm–20mm roundbar recommended)
- Ideal for high-speed automated gates
- Includes robust steel gate end-stop with rubber buffer
Specifications
Built to spec, proven in the field.
- Dimensions (L × H × W)
- 150 × 90 × 53 mm
- Mounting centres
- 70 mm
- Max load (1 set)
- 600 kg
- Max load (4 sets)
- 2400 kg
- Bearings
- Sealed — maintenance free
- Suspension
- Patented polymer spring
- Rails
- Angle & round
- Finishes
- Electroplated Mild Steel · Stainless Steel
- Warranty
- Industry-leading warranty
Dimensions
Compact footprint. Oversized capacity.
Industry-leading warranty
Industry-leading warranty on the mounting and wheel bracket. Covers manufacturing defects and clear product failure. Excludes impact damage, misuse and unauthorised modification (T&Cs apply).
Ready to specify your gate?
Tell us the gate weight, length and finish — we'll recommend the right number of sets.
